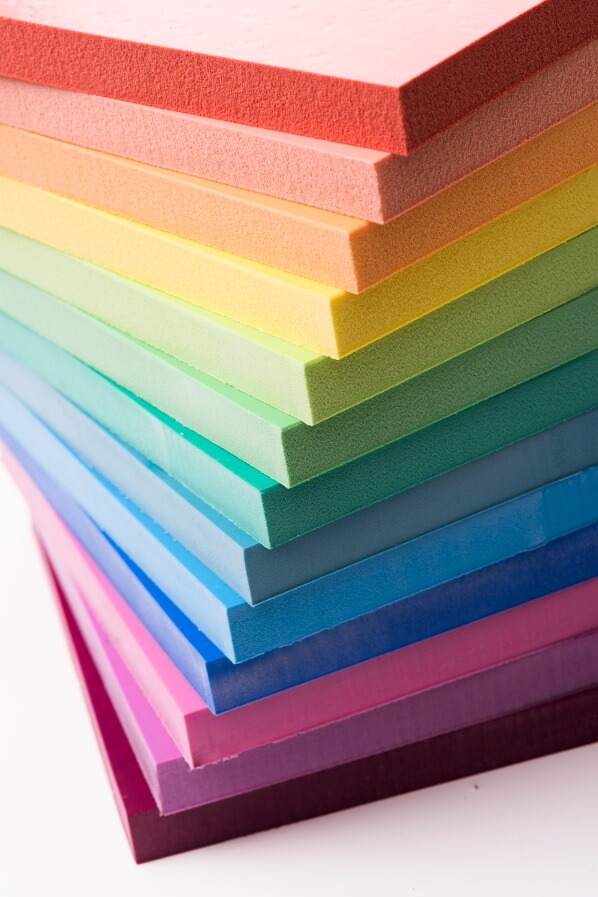

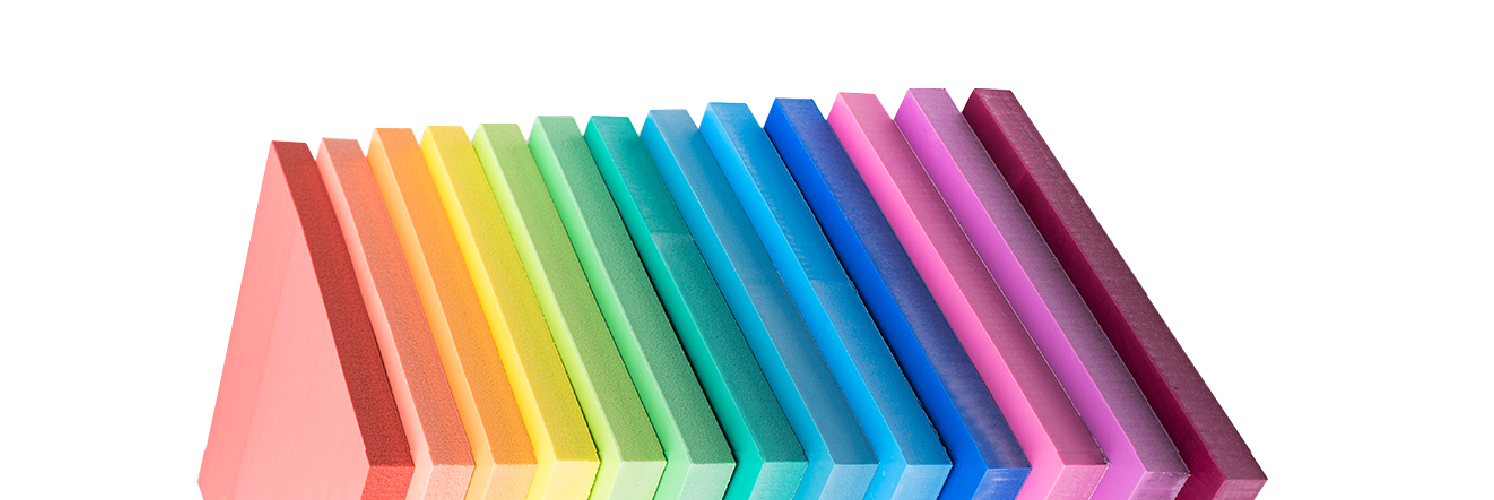

VIKAFOAM PUR vibration-damping plates

VIKAFOAM VF

The VIKAFOAM PUR material has excellent vibration isolation properties, excellent chemical resistance and a long lifespan.

VIKAFOAM vibration-damping plates are a product with many possible applications, among others within:

The construction industry

  • For floating wooden floors in e.g. sports halls, bowling alleys and studios
  • For vibration isolation of entire building sections from each other
  • For insulating step sound in stairwells (where the entire stairwell is placed on VIKAFOAM)
  • For decoupling larger building elements from the rest of the building

The industry

  • Vibration isolation of machines in the form of point supports
  • For floating floors in concrete or inertia blocks, because it is possible to cast the concrete directly on top of the PUR material

13 basic types of VIKAFOAM

For almost every application, there are 13 basic types of VIKAFOAM available, ranging from VF 10 to VF 1900. The desired requirements can be achieved easily through an appropriate selection of Vikafoam types, support surface area and construction height

Download

VIKAFOAM Product overview

Download

VIKAFOAM Detailed Data Sheet

Vibration dampening plate VIKAFOAM 10
Download

VIKAFOAM 10

Static Max.: 0.010 N/mm2

Vibration dampening plate VIKAFOAM 16
Download

VIKAFOAM 16

Static Max.: 0.016 N/mm2

Vibration dampening plate VIKAFOAM 26
Download

VIKAFOAM 26

Static Max.: 0.026 N/mm2

Vibration dampening plate VIKAFOAM 40
Download

VIKAFOAM 40

Static Max.: 0.040 N/mm2

Vibration dampening plate VIKAFOAM 65
Download

VIKAFOAM 65

Static Max.: 0.065 N/mm2

Vibration dampening plate VIKAFOAM 110
Download

VIKAFOAM 110

Static Max.: 0.110 N/mm2

Vibration dampening plate VIKAFOAM 170
Download

VIKAFOAM 170

Static Max.: 0.170 N/mm2

Vibration dampening plate VIKAFOAM 260
Download

VIKAFOAM 260

Static Max.: 0.260 N/mm2

Vibration dampening plate VIKAFOAM 400
Download

VIKAFOAM 400

Static Max.: 0.400 N/mm2

Vibration dampening plate VIKAFOAM 650
Download

VIKAFOAM 650

Static Max.: 0.650 N/mm2

Vibration dampening plate VIKAFOAM 950
Download

VIKAFOAM 950

Static Max.: 0.950 N/mm2

Vibration dampening plate VIKAFOAM 1300
Download

VIKAFOAM 1300

Static Max.: 1300 N/mm2

Vibration dampening plate VIKAFOAM 1900
Download

VIKAFOAM 1900

Static Max.: 1900 N/mm2

Download

Influence of chemical substances

Download

Material processing

Download

Material tolerances

Download

Safety Data Sheet
