EMI/RF-Protected Chambers

IAC Acoustics A/S has extensive experience with Faraday cage installations, and our solution distinguishes itself by not only having a high EMI/RF-Shielding, but also a high degree of acoustic dampening. Read more about Level 1, Level 2, Level 3 of EMI/RF-protection, which can be combined uniquely with high requirements for noise reduction and acoustics.

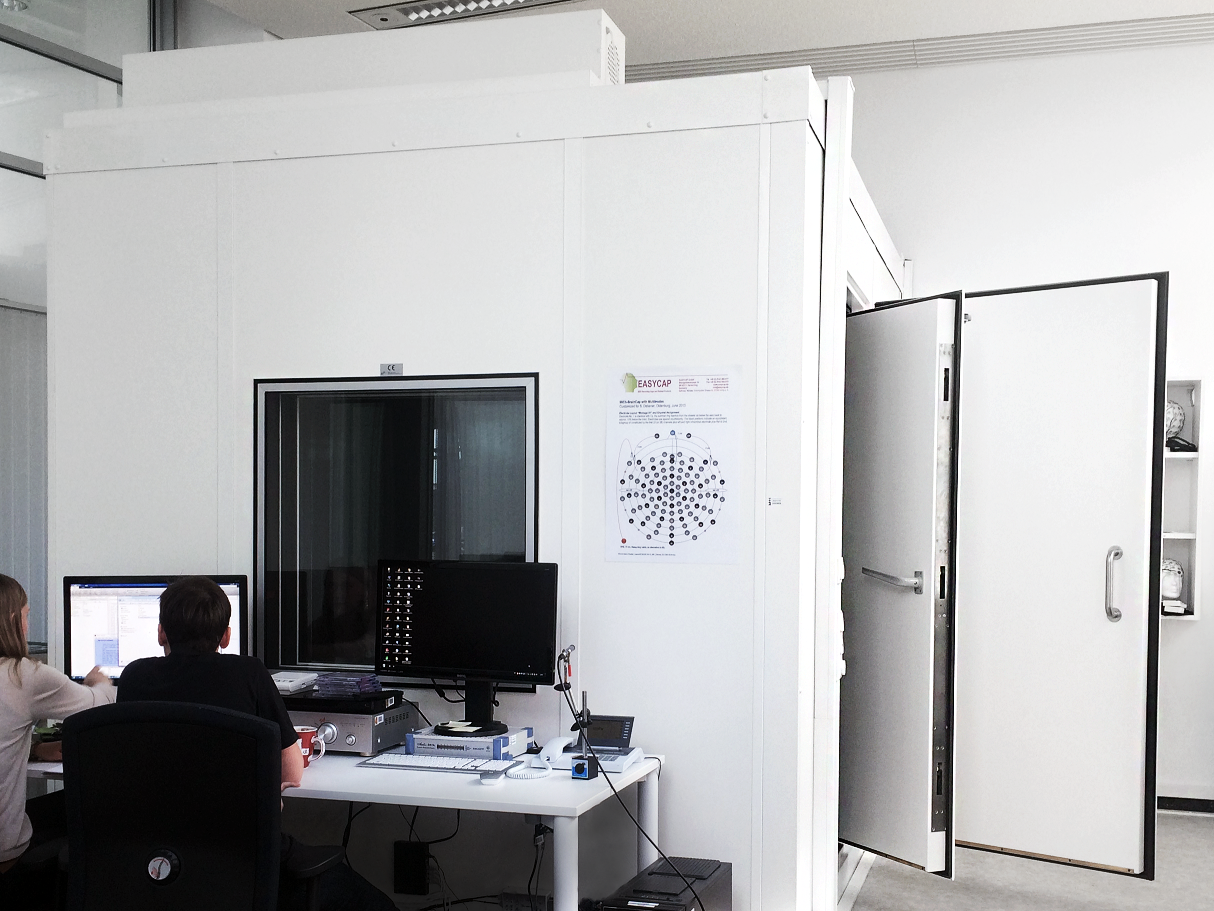

EMI/RF Protected Chambers with high sound insulation

IAC Acoustics A/S builds and installs Faraday Cage installations which provide good protection and shielding from RF and EMI signals, and where there at the same time are high requirements for sound attenuation.

IAC Faraday Cages with EMI/RF-Shielding are used for:

• LF/RF/HF tests
• EMC test labs
• Wireless product testing
• EMI/RFI shielded server rooms
• Protection of sensitive information (NATO TEMPEST standards)
• HEMP & EMP Protection
• Neuroscience Laboratories and Neurology labs
• Cellular communication devices
• Immunity & emission test chambers* MRI rooms

IAC Acoustics' Faraday cages are ideal for rooms where very low background noise and/or high sound insulation is needed.

3 types of EMI/RF-Shielding levels

Basically, our acoustic construction system Moduline (which is made of steel) is an excellent Faraday Cage and without changing the default jointings and details, it delivers what we call a Level 1 Shielding of 25dB.

If desired, we can improve our jointing details, so that there is certain metallic contact in all jointings, and by placing RF gaskets in the doors and RF filters in the ventilation system as well as signal filters on all incoming electrical installations, we achieve what we refer to as a Level 2 Shielding of 50dB, which will be sufficient for most purposes.

In case of, simultaneous, extreme EMI/RF-protection and acoustics requirements, IAC offer a solution where we build a 100% Faraday Cage on the outside of our standard acoustic wall. We refer to such a solution as a Level 3 Shielding of 100dB.

Summary of our Shielding levels:

• Level 1: 25dBhttps://www.iac-nordic.dk/en/admin/dashboard
• Level 2: 50dB
• Level 3: 100dB

Sound insulation and EMI/RF-Shielding

With IAC's EMI/RF-shielded rooms, our customers no longer have to compromise between noise reduction, sound insulation, sound absorption og EMI/RF-Shielding.
