Shock mounts

IAC Acoustics are suppliers of shock mounts of the wire rope mount, Elastomer mount and NATO elastic mount types. We provide free one-DOF shock calculations and are pleased to provide a tender for a full system simulation.
See below for the standards we provide shock calculations in accordance with.

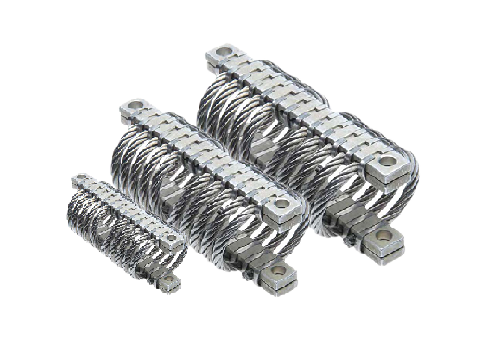

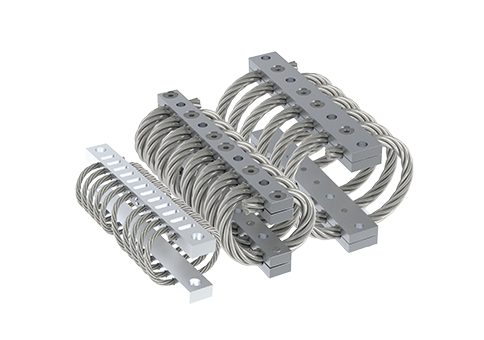

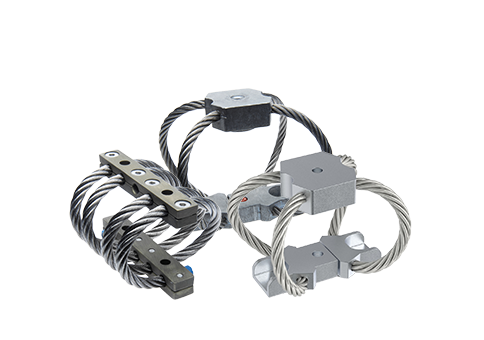

Helical Mounts

The Helical type shock and vibration mount is a wire mount that covers the entire range from small to large equipment. Most often used by the military and can also be used for many transport tasks.

Download

Product Catalogue Helical Mounts

Download

C1260 Shock Mount

Wire Rope mount, 5.2Hz and 47.6kg

Download

CB1270 Shock Mount

Wire Rope mount, 5.0Hz and 68.3kg

Download

CB1280 Shock Mount

Wire Rope mount, 5.0Hz and 105kg

Download

CB1290 Shock Mount

Wire Rope mount, 5.0Hz and 148kg

Download

CB1300 Shock Mount

Wire Rope mount, 3.7Hz and 150kg

Download

CB1380 Shock Mount

Wire Rope mount, 3.7Hz and 208kg

Download

CB1390 Shock Mount

Wire Rope mount, 3.7Hz and 359kg

Download

CB61400 Shock Mount

Wire Rope mount, 3.3Hz and 372kg

Download

CB1400 Shock Mount

Wire Rope mount, 3.3Hz and 496kg

Download

CB1500 Shock Mount

Wire Rope mount, 4.3Hz and 846kg

Download

CB1600 Shock Mount

Wire Rope mount, 3.8Hz and 1151kg

Download

CB1700 Shock Mount

Wire Rope mount, 3.2Hz and 1528kg

Download

CB1800 Shock Mount

Wire Rope mount, 3.1Hz and 1966kg

Download

CB1900 Shock Mount

Wire Rope mount, 3.3Hz and 1842kg

Download

CB2000 Shock Mount

Wire Rope mount, 3.4Hz and 3024kg

Download

CB2100 Shock Mount

Wire Rope mount, 4.0Hz and 3519kg

0
Download

CB2300 Shock Mount

Wire Rope mount, 2.7Hz and 7704kg

Download

CH2 Shock Mount

Wire Rope mount, 6.4Hz and 3.4kg

Download

CH3 Shock Mount

Wire Rope mount, 6.3Hz and 11.5kg

Download

CH4 Shock Mount

Wire Rope mount, 6.7Hz and 24.9kg

Download

CH5 Shock Mount

Wire Rope mount, 6.2Hz and 49.5kg

Download

CH6 Shock Mount

Wire Rope mount, 7.1Hz and 98.2kg

Download

Series Z Shock Mount

Wire Rope mount, 4.1Hz and 1885kg

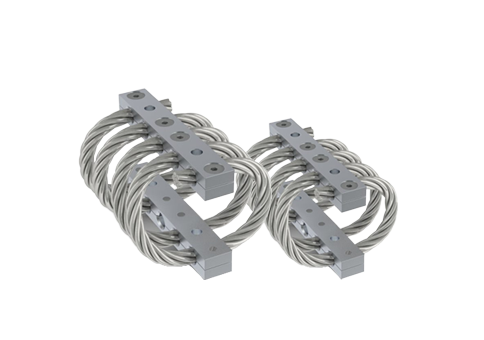

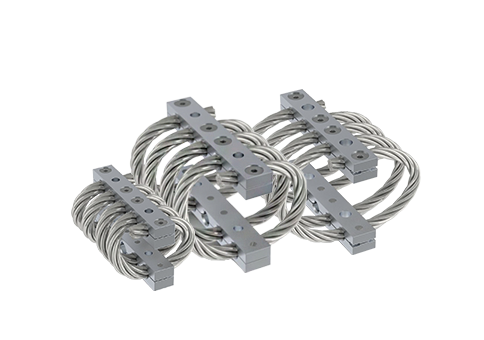

Half Helical Mounts

Shock and vibration type Half-Helical is a wire mount for the medium-duty tasks. Most often used by the military and can also be used for many transport tasks.

Download

Product catalogue Half Helical Mounts

Download

HH8 Shock Mount

Wire Rope mount, 5.0Hz and 35.8kg

Download

HH9 Shock Mount

Wire Rope mount, 5.0Hz and 55.1kg

Download

HH10 Shock Mount

Wire Rope mount, 5.0Hz and 77.7kg

Download

HH11 Shock Mount

Wire Rope mount, 3.9Hz and 161kg

Download

HH13 Shock Mount

Wire Rope mount, 3.9Hz and 89.7kg

Download

HH14 Shock Mount

Wire Rope mount, 3.4Hz and 246kg

Download

HH15 Shock Mount

Wire Rope mount, 4.3Hz and 436kg

Download

HH16 Shock Mount

Wire Rope mount, 3.9Hz and 564kg

Download

HH17 Shock Mount

Wire Rope mount, 3.0Hz and 706kg

Download

HH18 Shock Mount

Wire Rope mount, 3.1Hz and 983kg

Download

HH19 Shock Mount

Wire Rope mount, 3.4Hz and 920kg

Download

HH20 Shock Mount

Wire Rope mount, 3.5Hz and 1409kg

Download

HH21 Shock Mount

Wire Rope mount, 4.0Hz and 1759kg

Download

ZH Shock Mount

Wire Rope mount for large deflection, 3.9Hz and 883kg

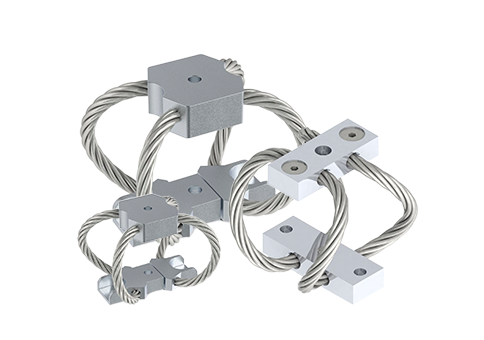

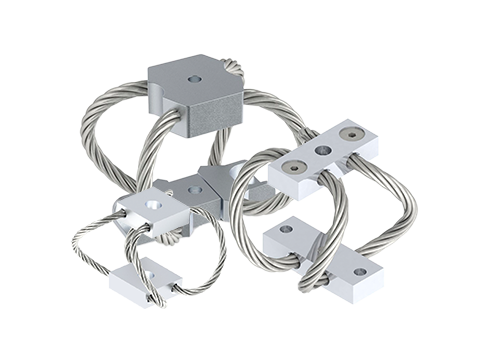

Polycal Mounts

Combined shock and vibration isolation. Polycal is for lighter equipment. Provides the same isolation in all directions. Used by the military and can also be used for transport.

Download

Product Catalogue Polycal Mounts

Download

MP4 Shock Mount

Wire Rope mount, 5.3Hz and 2.8kg

Download

MP5 Shock Mount

Wire Rope mount, 5.2Hz and 5.6kg

Download

MP6 Shock Mount

Wire Rope mount, 5.1Hz and 10.6kg

Download

MP8 Shock Mount

Wire Rope mount, 4.4Hz and 14.3kg

Download

MP9 Shock Mount

Wire Rope mount, 4.1Hz and 21.0kg

Download

MP10 Shock Mount

Wire Rope mount, 4.3Hz and 28.3kg

Download

MP11 Shock Mount

Wire Rope mount, 4.2Hz and 54.3kg

Download

MP13 Shock Mount

Wire Rope mount, 4.2Hz and 30.3kg

Download

MP14 Shock Mount

Wire Rope mount, 3.7Hz and 92.4kg

Download

MP15 Shock Mount

Wire Rope mount, 3.0Hz and 101kg

Download

MP16 Shock Mount

Wire Rope mount, 3.0Hz and 160kg

Download

MP17 Shock Mount

Wire Rope mount, 3.0Hz and 264kg

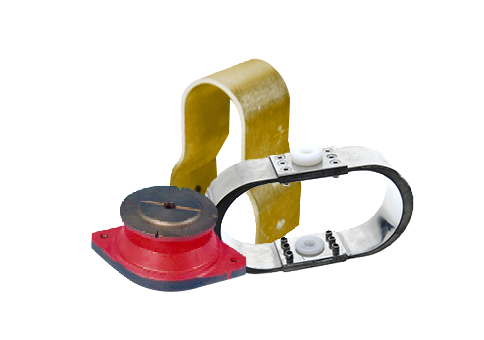

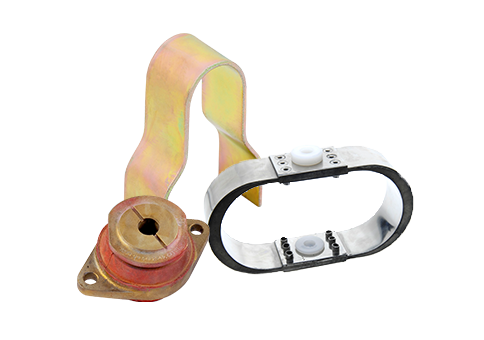

NATO Stock Mounts

NATO Stock shock mounts are slightly older models of shock mounts, which are widely used in naval vessels. Can be used for industrial purposes for isolating shock impact and where it is important to achieve a high degree of vibration isolation simultaneously.

Download

X-mount

Leaf Spring Mount as BR, Nato Shock Mount

Download

Y-mount

Leaf spring mount with the rubber bush

Download

L-mount

Rubber Spring Mount as per BR, NATO Shock Mount

Download

PD-mount

Rubber Spring Mount, NATO Shock Mount

Download

J-mount

All Metal Mount Nato Shock Mount

Download

Q-mount

Rubber Spring Mount, NATO Shock Mount

Download

K-mount

Rubber Spring Mount, NATO Shock Mount

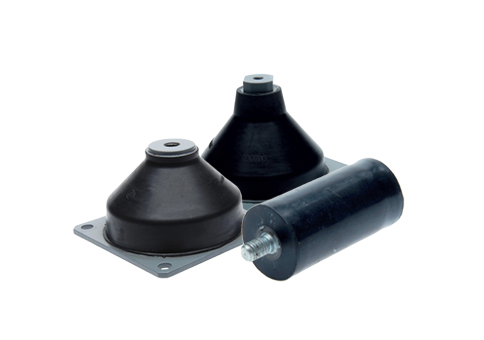

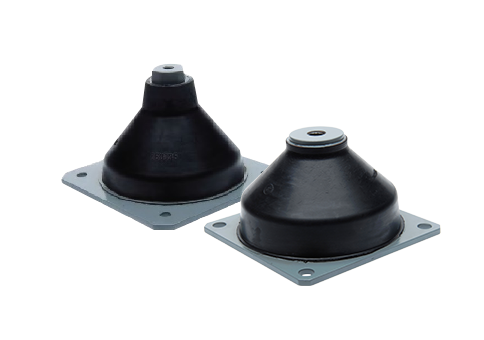

Elastomer Mounts

Elastomer mounts have excellent shock and vibration isolation properties and are most commonly used to reduce the acoustic signature of naval vessels. Can be widely used for industrial applications where there is shock or falling loads.

Download

Product catalogue Elastomer Mounts

Download

Elastomer Mounts BFB

Transport Shock mount, 8Hz and 15-120kg

Download

Elastomer Mounts BFC

Transport Shock mount, 8Hz and 80-1200kg

Download

Elastomer Mounts BFCO

Transport Shock mount, 4Hz and 3-30kg

Download

Elastomer Mounts BF45

Naval Shock mount, CR rubber, 5Hz and 30-1080kg

Download

Elastomer Mounts BFN45

Naval Shock Mount, NR Rubber, 5Hz and 30-1080kg

Download

Elastomer Mounts BFJ

Naval Shock Mount, CR rubber, 5Hz and 10-130kg

Download

Elastomer Mounts BFL

Naval Shock Mount, CR rubber, 5Hz and 5-10kg

Download

Elastomer Mounts BFM

Naval Shock Mount, CR rubber, 5Hz and 5-10kg

Download

Elastomer Mounts PC31

Transport Shock mount, Silicone rubber, 10Hz and 11-20kg

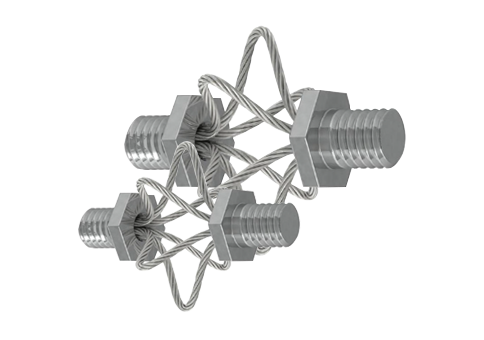

Axycal Mounts

Shock and vibration mount, Type Axycal is for use with very light equipment. Used by the military and can also be used for transport.

Download

Product Catalogue Axycal Mounts

Download

Axycal Mounts AX2

All Metal Mount up til 0.66kg

Download

Axycal Mounts AX3

All Metal Mount up til 2.2kg

Download

Axycal Mounts AX4

All Metal Mount up til 2.54kg

Download

Axycal Mounts AX5

All Metal Mount up to 2.84kg
