Vibration Damping Sheet

IAC Acoustics stocks PUR and rubber sheets. For floating floors we calculate piece sizes and can supply drawings showing placement of the pieces, we can also take care of installing the casting mould/ subfloor. Below is a film about the floating floor we designed for Nordisk Film Cinemas theatre at the Waves Shopping Centre in Hundige, Denmark.

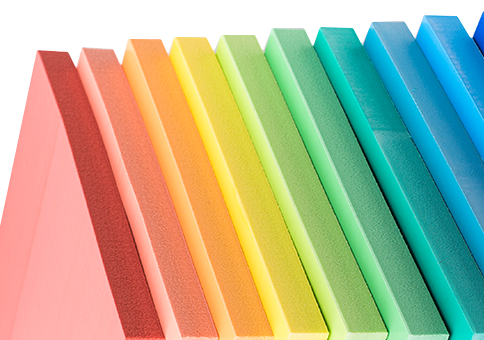

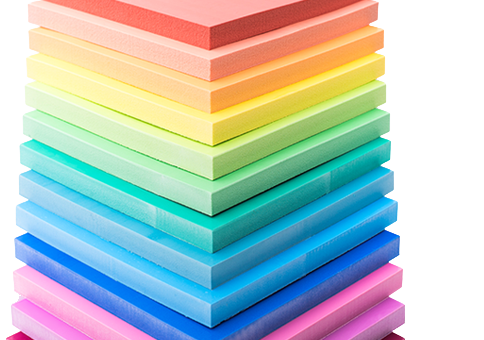

VIKAFOAM VF

The VIKAFOAM PUR material has excellent vibration isolation properties, excellent chemical resistance and a long lifespan and is therefore also used in the construction sector to isolate whole building sections from each other.

Download

VIKAFOAM Product overview

Download

VIKAFOAM Detailed Data Sheet

Download

VIKAFOAM 10

Static Max.: 0.010 N/mm2

Download

VIKAFOAM 16

Static Max.: 0.016 N/mm2

Download

VIKAFOAM 26

Static Max.: 0.026 N/mm2

Download

VIKAFOAM 40

Static Max.: 0.040 N/mm2

Download

VIKAFOAM 65

Static Max.: 0.065 N/mm2

Download

VIKAFOAM 110

Static Max.: 0.110 N/mm2

Download

VIKAFOAM 170

Static Max.: 0.170 N/mm2

Download

VIKAFOAM 260

Static Max.: 0.260 N/mm2

Download

VIKAFOAM 400

Static Max.: 0.400 N/mm2

Download

VIKAFOAM 650

Static Max.: 0.650 N/mm2

Download

VIKAFOAM 950

Static Max.: 0.950 N/mm2

Download

VIKAFOAM 1300

Static Max.: 1300 N/mm2

Download

VIKAFOAM 1900

Static Max.: 1900 N/mm2

Download

Influence of chemical substances

Download

Material processing

Download

Material tolerances

Download

Safety Data Sheet

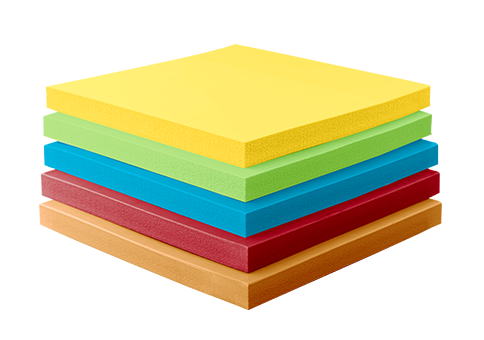

VIKADYN VD

VIKADYN Vibration damping sheet for exceptional vibration isolation. VIKADYN has a larger allowable deflection and thus a lower natural frequency. Available in versions VD 150 and VD 350.

Download

VIKADYN Product overview

Download

VIKADYN 150

Static Max.: 0.150 N/mm2

Download

VIKADYN 350

Static Max.: 0.350 N/mm2

Download

Influence of chemical substances

Download

Material processing

Download

Material tolerances

Download

Safety Data Sheet

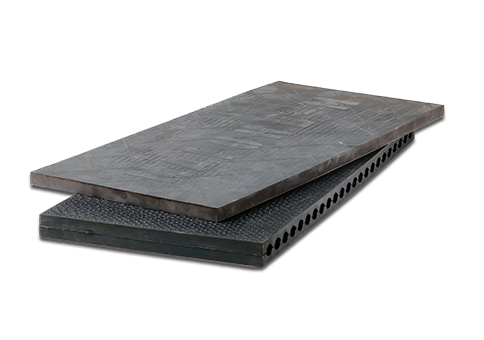

Rubber Sheeting

Rubber sheeting may be used for vibration isolation of larger, heavy machine set-ups, such as tooling machines, printing machines, textile machines, lift machinery and in many other applications. Can be layered for better damping.

Download

Rubber sheet MF

MAFUND Anti vibration sheeting, available in solid and hollow versions.

Download

Rubber sheet RG8 and RG10

VIKAS grooved rubber sheeting, oil-resistant and anti-static.

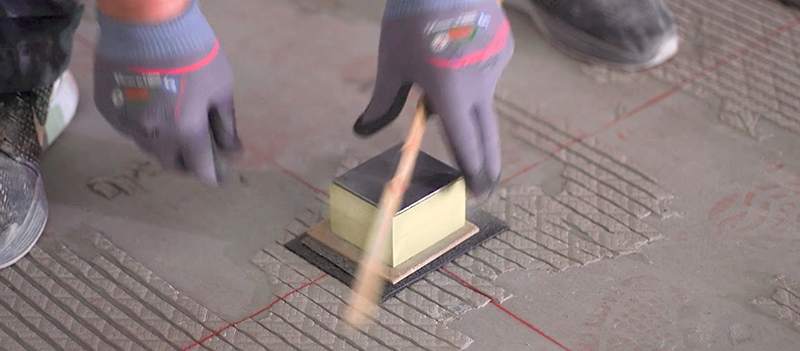

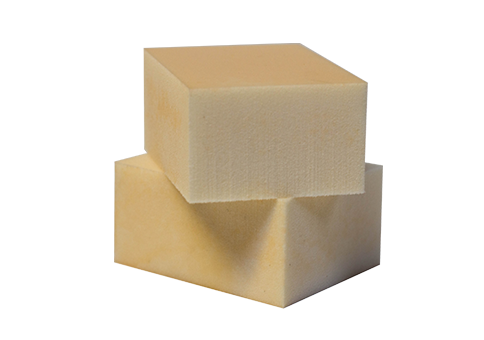

VIKACELL

VIKACELL is a microcellular elastomer, which is extra flexible, and can handle up to 75% - 80% compression without damage to the material. VIKACELL is typically used for floating floors requiring a high level of sound insulation.

Download

VIKACELL
