Spring Mounts

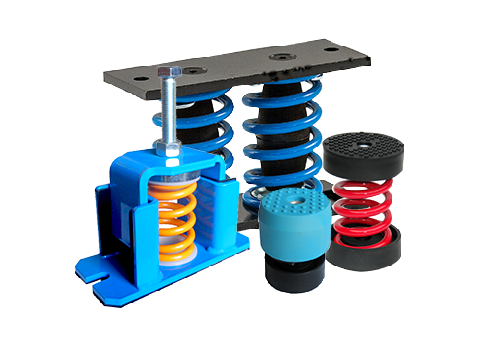

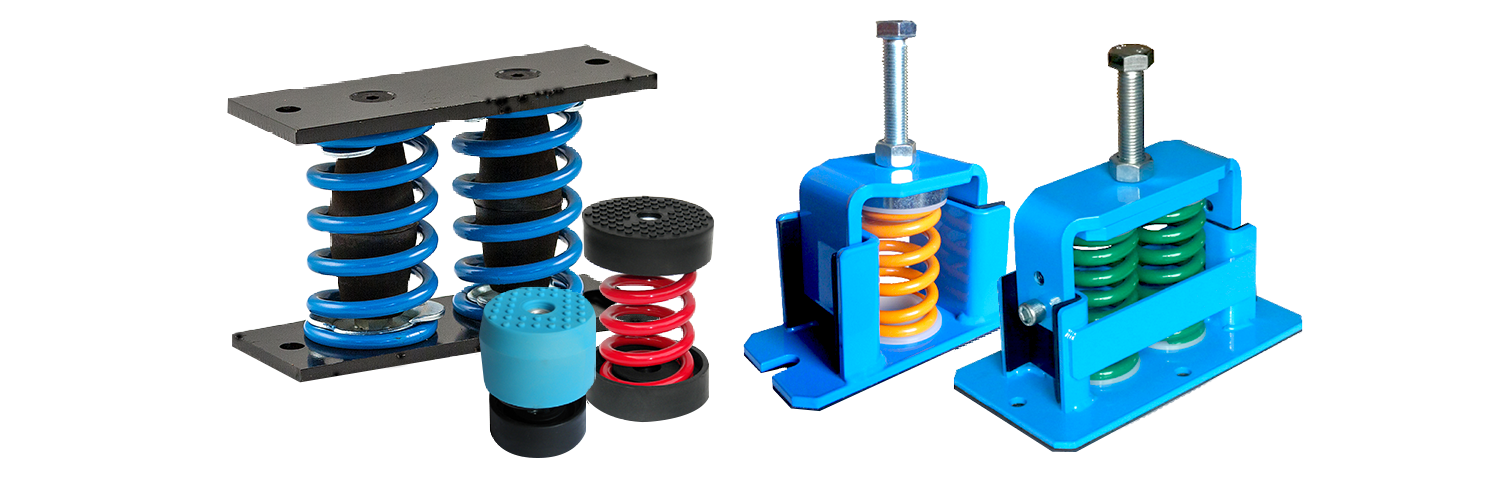

We have a wide selection of spring mounts ranging from spring Mounts in housings, with foot plate, stainless and earthquake-proof mounts and spring mounts with vertical stops.

A special selection of the spring mounts is particularly suitable for noise and vibration isolation of heat pumps and air conditioning, for example FDHL and FDHH.

The film below shows the difference in rubbers for rubber vs. spring mounts.

Download

Enclosed Spring Mount FDHL

Used indoors in smaller installations, low.

Download

Enclosed Spring Mount FDHH

Used indoors for smaller installations, high.

Download

Spring Mount in Steel Housing ES

Over 450 O/min. Load from 10-1750kg.

Download

Open Spring Mount FDO40

ø40mm with non-slip top/bottom.

Download

Spring Mount open FDO74

ø74mm with non-slip top / bottom.

Download

Spring Mount ALU FDO52

Powder coated with aluminium insert.

Download

Multiple Open Spring Mount FDA

Over 500 O/min. Load from 12-155kg.

Download

Stainless Steel Spring Mount FDA-316

For outdoor use and for use in aggressive environments.

Download

Spring Mount FDA1

Over 450 O/min. Load from 100-850kg.

Download

Stainless Mount FDA1-316

For outdoor use and for use in aggressive environments.

Spring Mount FDA2-FDA9
Download

Spring Mount FDA2-FDA9

Over 350 O/min. Load from 225-3750kg.

Seismic Spring Mount FDS1
Download

Seismic Spring Mount FDS1

Good for wind load. Control height using centre bolt.

Download

Seismic Spring Mount FDS2

Good for wind load. Control height using centre bolt.

Download

Seismic Spring Mount FDS4

Good for wind load. Control height using centre bolt.

Download

Spring Mount Housed FDH1

Spring mount with motion limitation

Spring Mount Housed FDH2
Download

Spring Mount Housed FDH2

Horizontal motion limitation

Spring Mount Housed FDH4
Download

Spring Mount Housed FDH4

Spring mount with motion limitation

Download

Restrained Spring Mount FDR

Spring mount with vertical stop. Cooling towers, etc.
